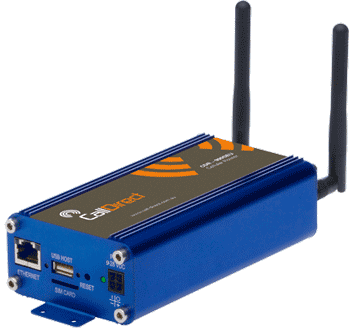

CDR-990seu Industrial 3G Cellular Router
Industrial wireless broadband and M2M connectivity for various mobile networks and service types UMTS/HSDPA/HSUPA and GSM/GPRS/EDGE.
The CDR-990seu allows you to build wide area networks utilizing the superior speeds supported by 3G/HSPA networks. The CDR-990seu provides the user a point-to-point or point-to-multipoint communications link in a single compact and resilient unit.
The CDR-990seu is a fully featured router supporting a large number of communication interfaces and protocols, to meet the demands of today’s telemetry and WAN applications.
Designed with remote installation in mind the CDR-990seu supports multi-level system monitoring, giving the user peace of mind the device will keep the communication lines up and open.
| 3G Module | Sierra Wireless MC8792V |
| UMTS/HSDPA/HSUPA |
Tri-Band 900/1900/2100 MHz |
| GSM/EDGE/GPRS |
Quad-Band 850/900/1800/1900 MHz |
Key Features
- Data throughput of up to 7.2 Mbps downlink (HSDPA) and 5.76 Mbps uplink (HSUPA)
- Powerful and reliable Sierra Wireless 3G module (Qualcomm MSM6290 chipset)
- Atmel ARM9-based Microcontroller / 16MB DRAM
- Expandable Open Source platform - Embedded Linux OS
- Ethernet interface (RJ-45) connectivity
- Serial RS-232 connectivity – supports PAD mode
- USB 2.0 host controller
- Advanced routing protocols: RIP, VRRP
- Integrated VPN clients PPTP/GRE and additional VPN clients IPSec/OpenVPN
- Ruggedized enclosure with wall mount option
- Extended operating temperature -30°C to 70°C
- Receive diversity - SMA connectors for antennas
- System monitoring and remote management
- SDK available for the creation of customized applications
- 1-year standard hardware warranty
Benefits
- Economical and flexible alternative to costly fixed-line connection
- High data speeds allow for large file transfers in a timely manner
- Ethernet and serial RS-232 connectivity in a single device
- Easy configuration and management from any web browser
- Allows secure connection over public cellular network via VPN
- Allows installation of additional Linux software applications
- Industrial grade product features - robustness suitable for use in demanding environments
- Wide input voltage provides flexibility for diverse environments and applications
- Remote diagnostics and configuration minimises field visits and lowers cost of operation
Downloads
-
552.3 KB -
1.1 MB
-
229.2 KB
-
1.3 MB
Firmware Update
Additional Software Packs
Below Linux software packs can be downloaded and installed on the router to expand the feature set further.
Additional Software
-
Outputs system information and provides a link which can be used to download the logs used for troubleshooting.
-
Installs a SSH daemon to use SSH instead of the default Telnet daemon.
-
Loads IPSec. Adds an extra option to the VPN menu in the web user interface for the configuration of IPSec.
-
Loads OpenVPN. All configurations are done thru the CLI (command line interface).
-
Installs SMSTools daemon to allow users to send SMS via the CLI.
-
Installs SSH client to be able to create SSH session from the unit.
-
Installs SFTP and SCopy. Allows SFTP to be used to transfer secure files.
-
Installs TCPDump daemon, which is used as a sniffer to see all packets that pass through a certain interface used for troubleshooting.
